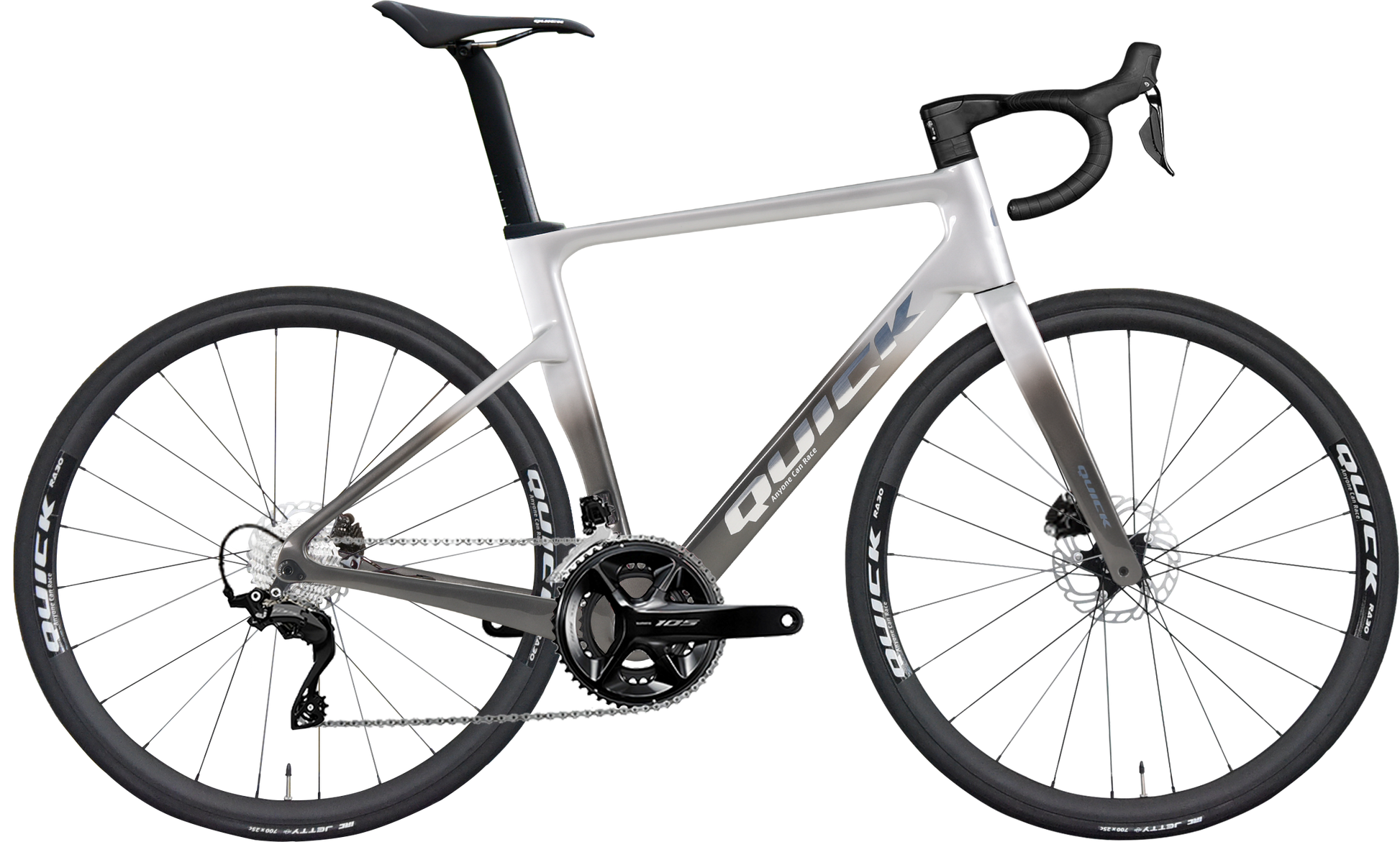

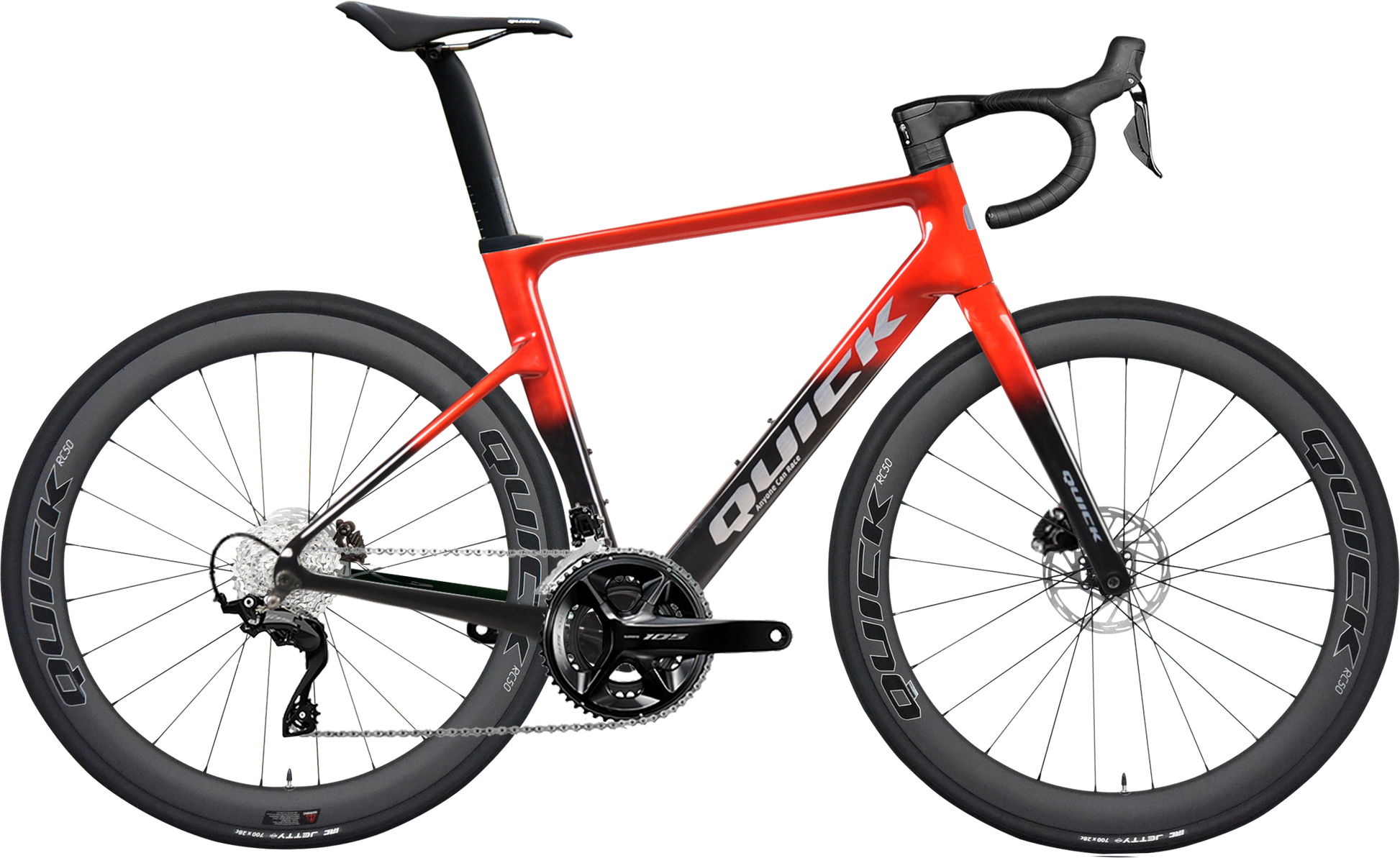

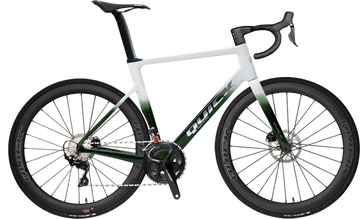

BLADE GEN 1 - responsive & aero

The new generation of aerodynamic design features a compressed horizontal tube profile that delivers greater stiffness and a more stable structure.

With fully internal cable routing and an integrated aero cockpit, the Blade not only looks clean and powerful — it cuts through the wind with purpose.

Built using Quick Pro’s exclusive MONOLITH one-piece molding technology, the Blade fully unleashes the performance of high-modulus carbon fiber.

Whether in high-speed cruising or an all-out sprint, it responds instantly, giving riders ultimate confidence and control.

Key Features

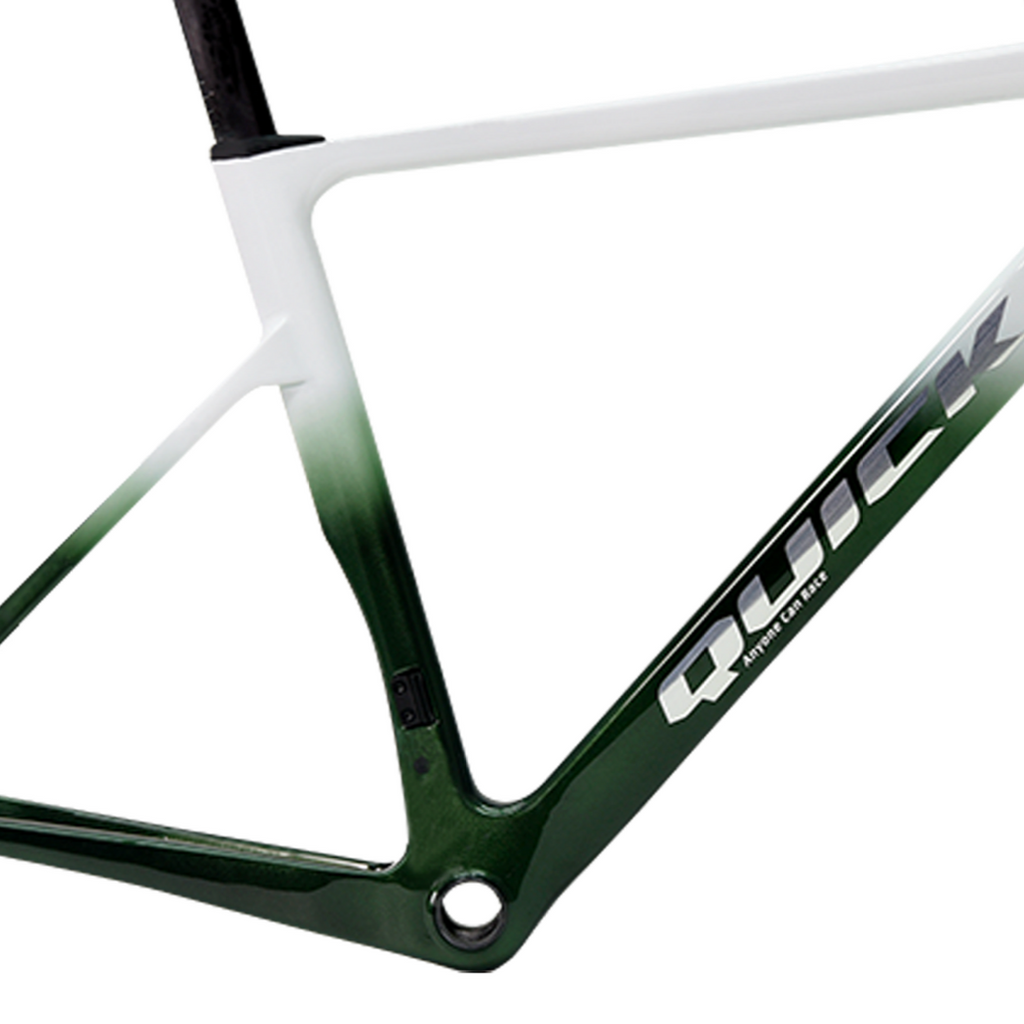

Performance Meets Comfort
Performance Meets Comfort
Engineered for riders who demand both speed and endurance

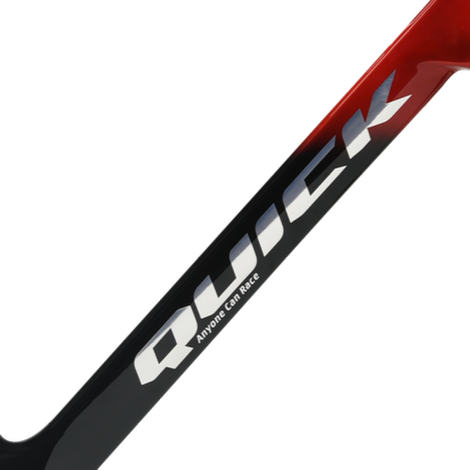

Advanced Materials
Advanced Materials
Built with Toray T1000 and M46 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.
Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

Model

BLADE GEN 1

Material

T1000 & M46

Headset

52 x 52 mm

BB

BB86 Press-Fit

Thru-axle

F/ 100×12mm R/ 142×12mm

Tire (Max.)

700×32c

Brakes

Flat-mount Disc

Weight

Frame/1100g±5% Fork/500g±5%

Wheels

CANWIN RC50

Inner Tube

700 x 28c

Saddle

SAMASSI 3D Print Saddle

Handlebar

CANWIN ZEPHYR SL

Size & Fit

SPECIFICATIONS XS S M L XL XXL
A. Seat Tube Length (mm) 443 464 492 512 534 552
B. Top Tube Length (mm) 517.8 531.2 548 570 585 600
C. Seat Tube Angle (°) 73.5° 73.5° 73.5° 73.5° 73.5° 73.5°
D. Head Tube Angle (°) 71.2° 71.5° 72° 72° 72° 72°
E. Head Tube Length (mm) 115 130 156.2 170 190 205
F. Chainstay Length (mm) 415 415 415 415 415 415
G. Wheelbase (mm) 973 983.9 996.8 1019.2 1034.8 1050.2
H. Fork Offset (mm) 45 45 45 45 45 45
I. Bottom Bracket Drop (mm) 72 72 72 72 72 72
J. Fork Length (mm) 375 375 375 375 375 375
K. Standover Height (mm) 722 742 768 788 808 825
Reach (mm) 363.5 372 381 399 408.4 418.8
Stack (mm) 521.2 537.7 564.3 577.4 596.4 610.7



Shimano 105 R7170 Di2 — 12-Speed Electronic Groupset

Drivetrain Components

Braking System

Included in Full Groupset Package

Shimano 105 R7100 — 12-Speed Mechanical Groupset

Drivetrain Components

Braking System

Included in Full Groupset Package
