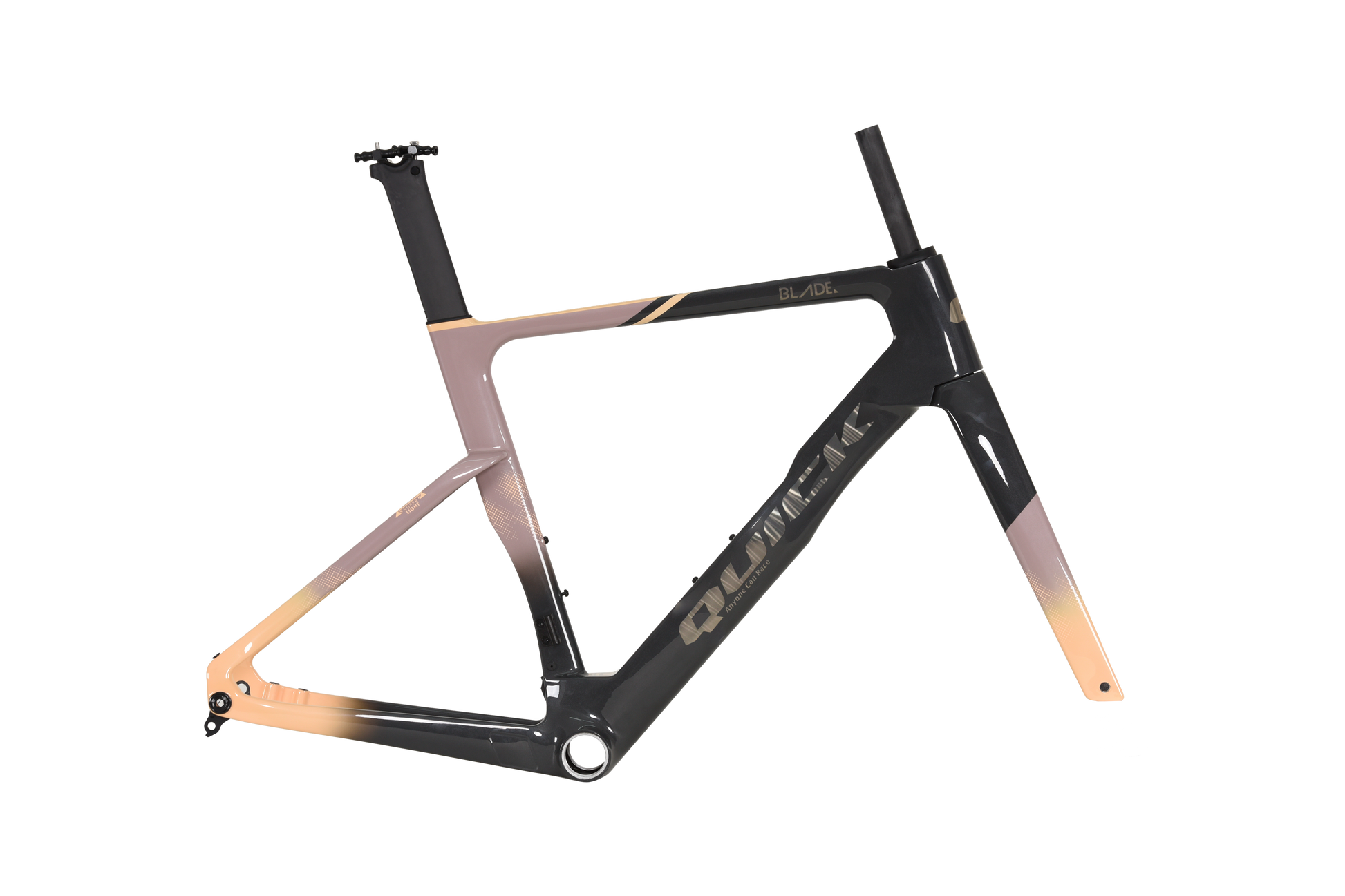

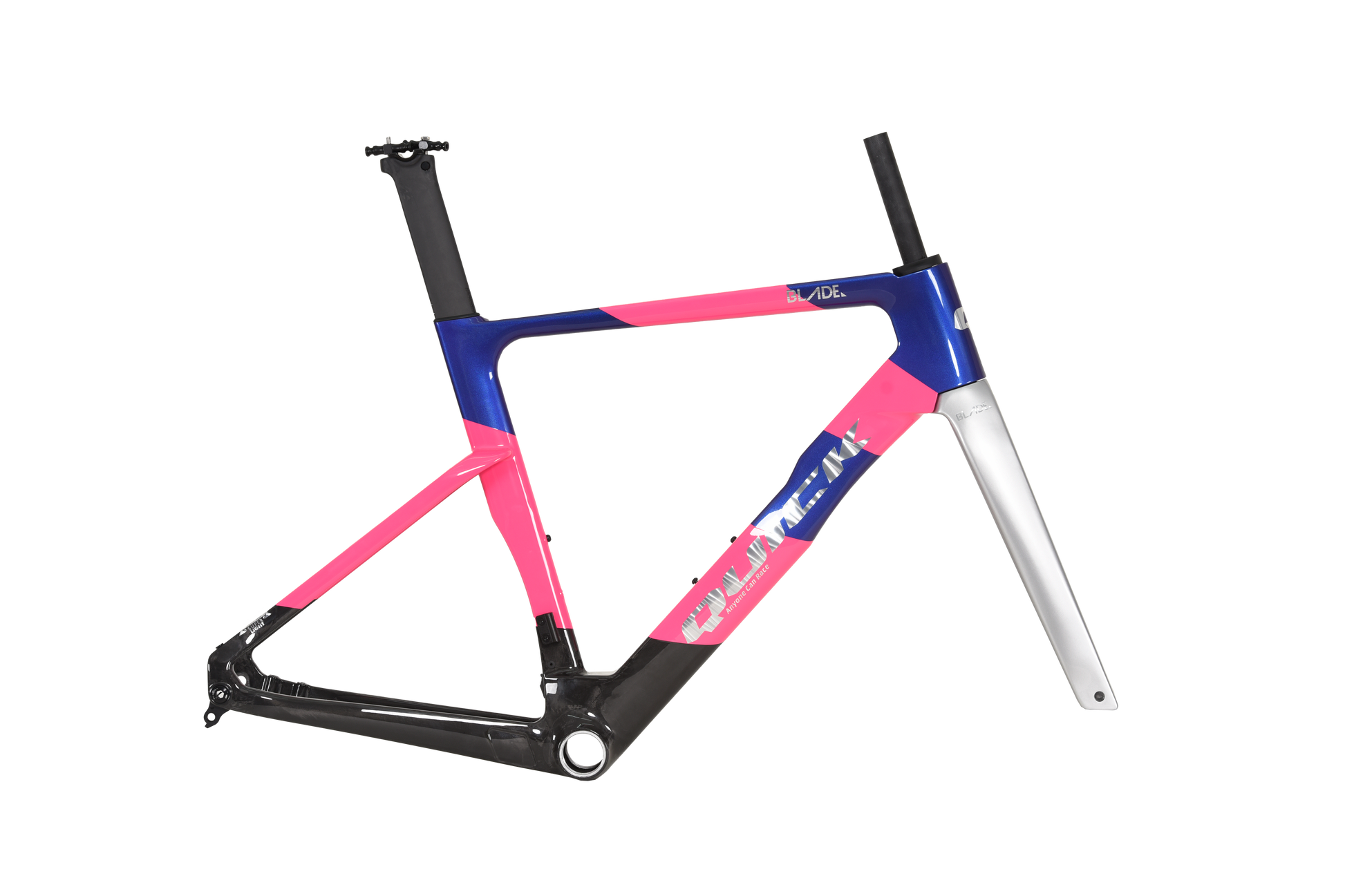

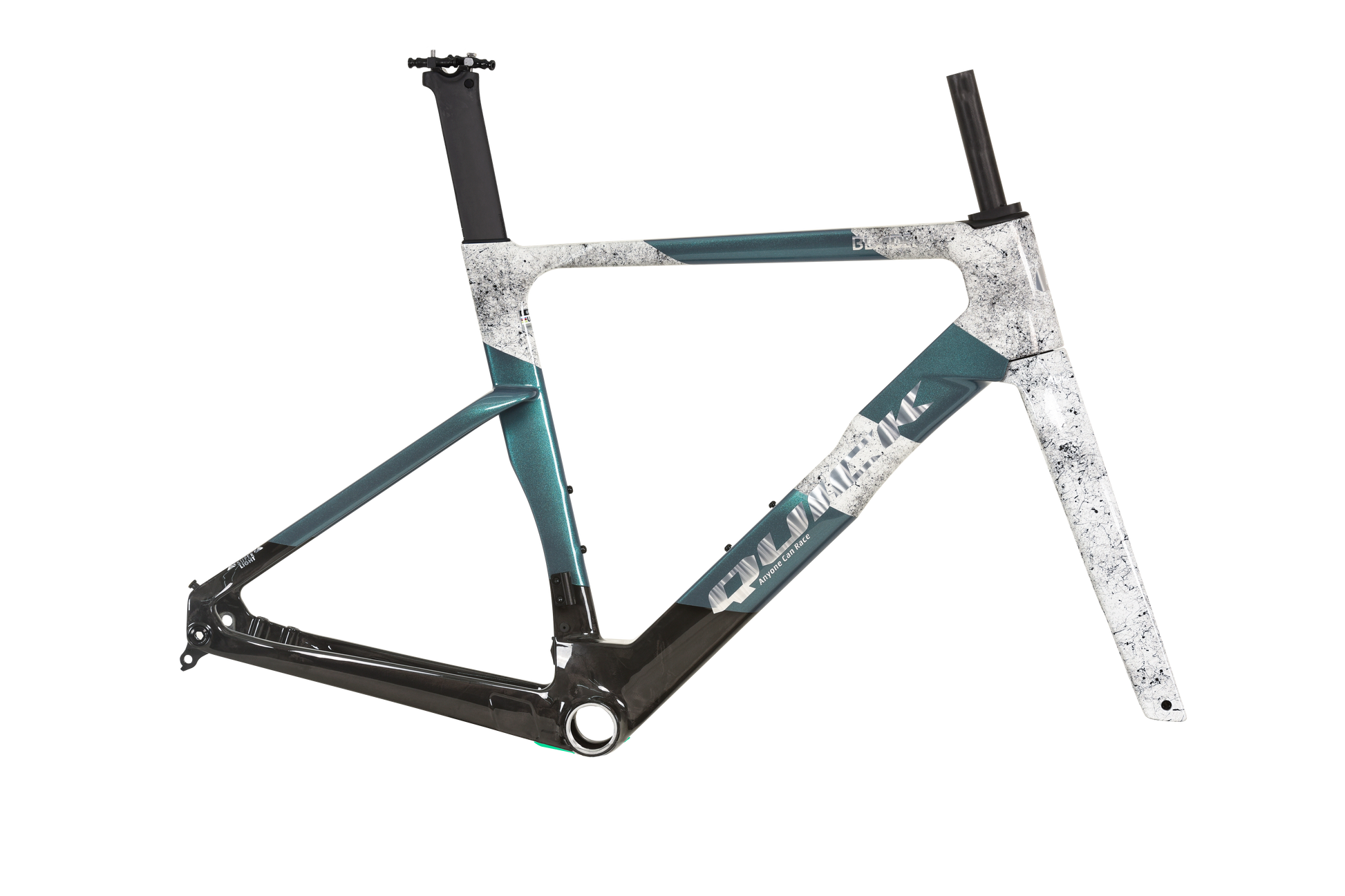

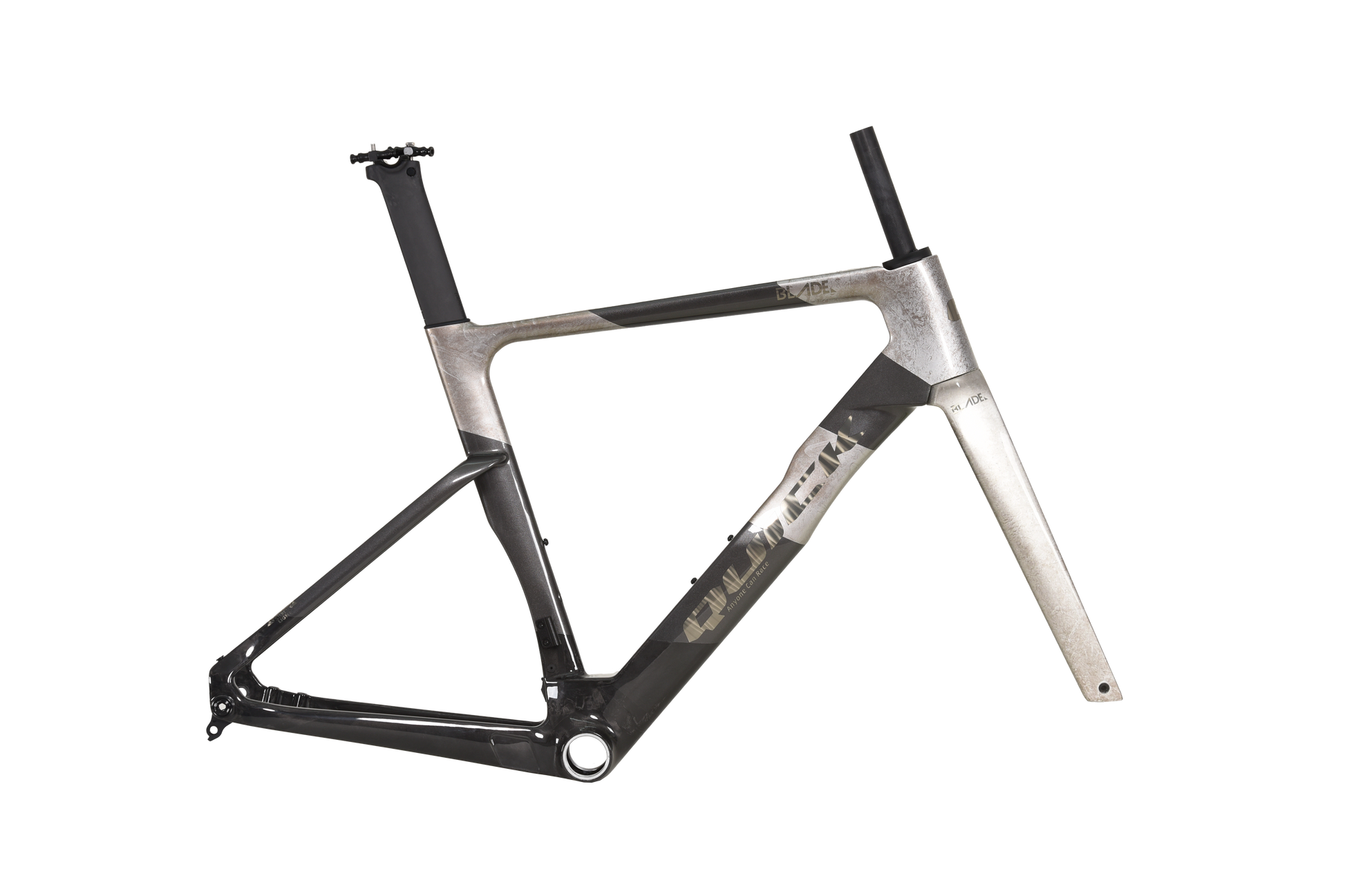

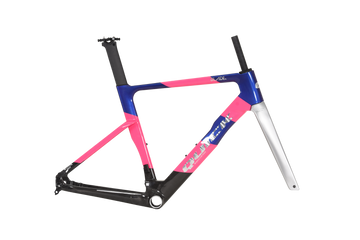

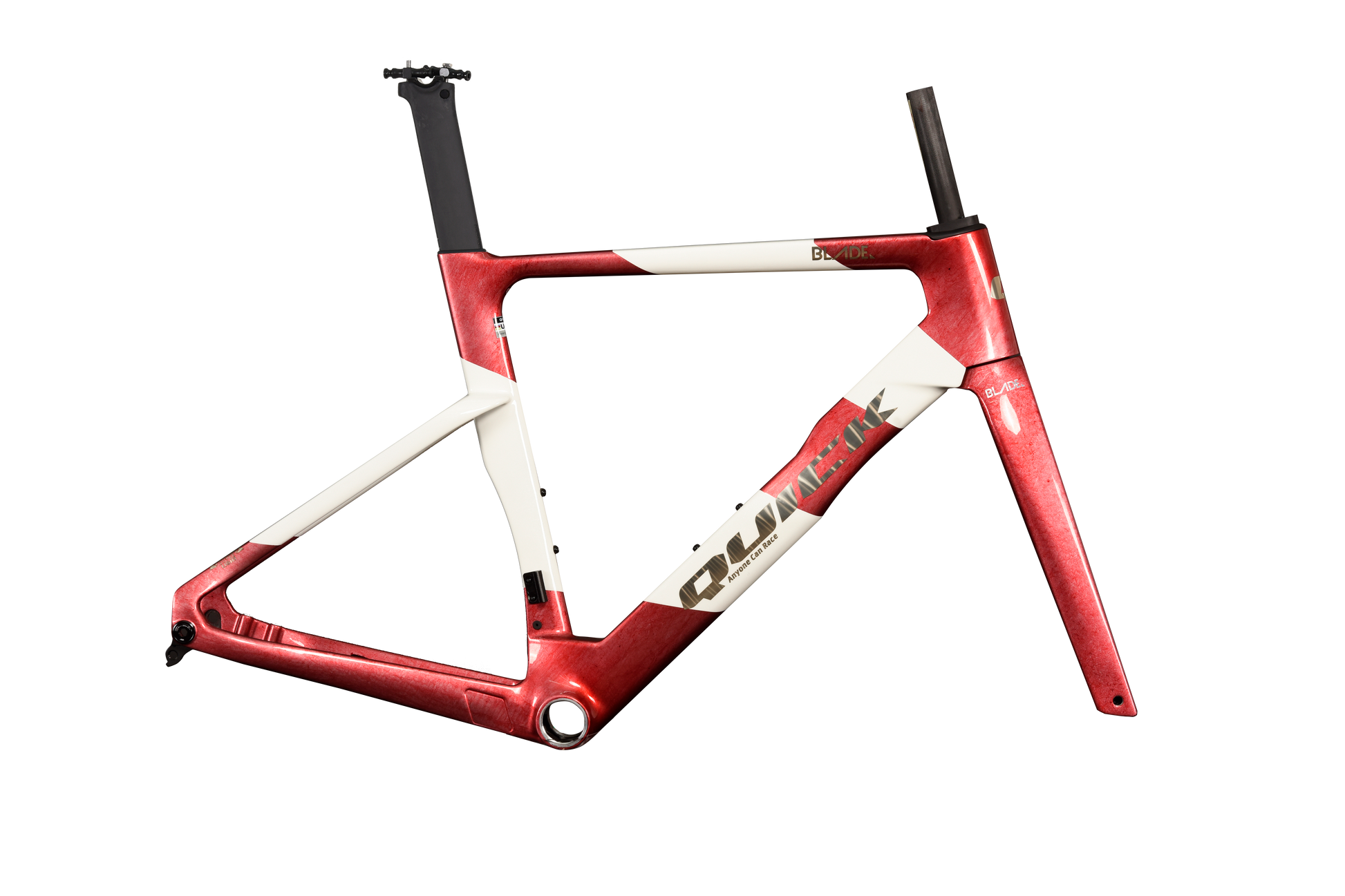

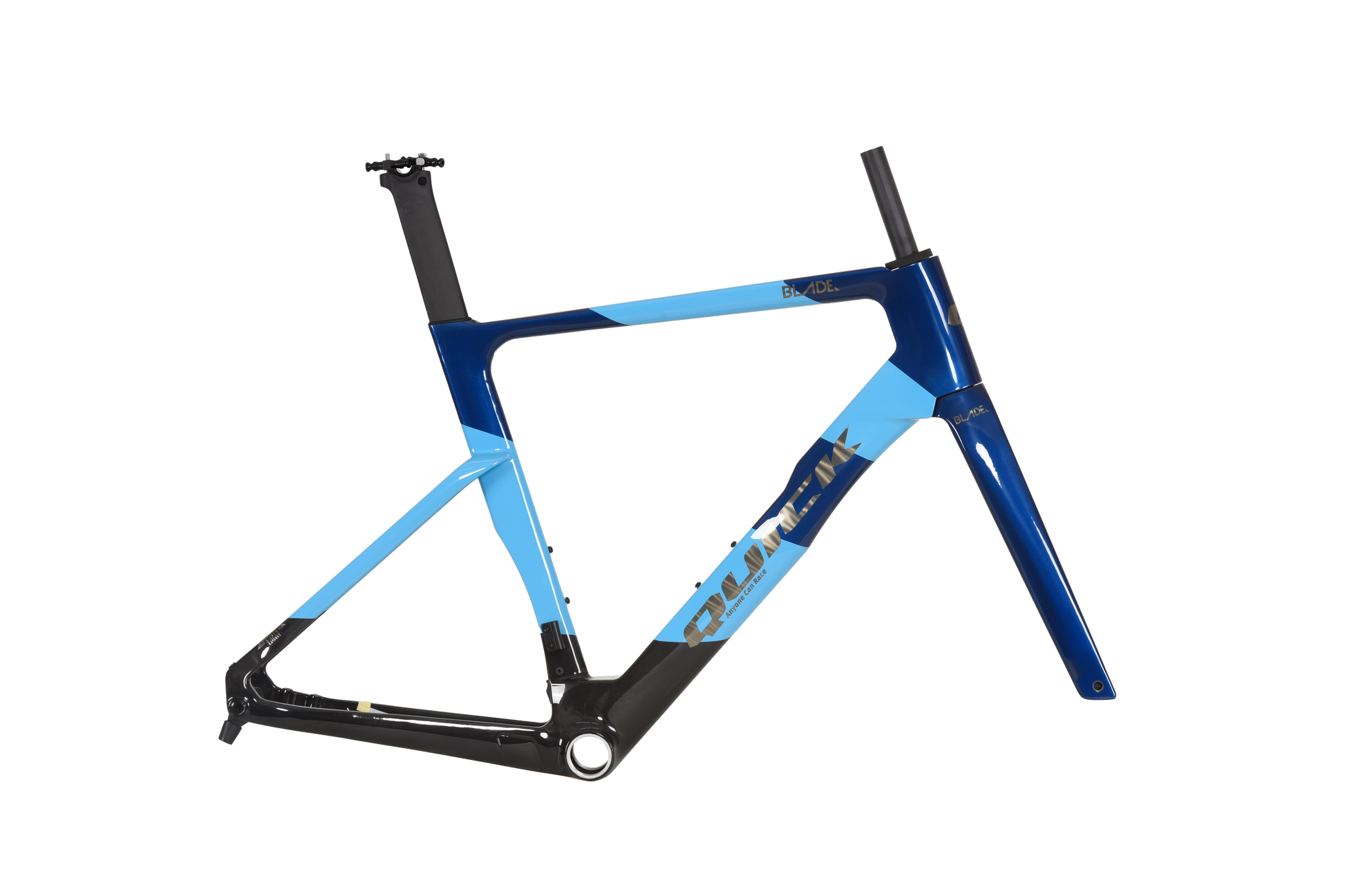

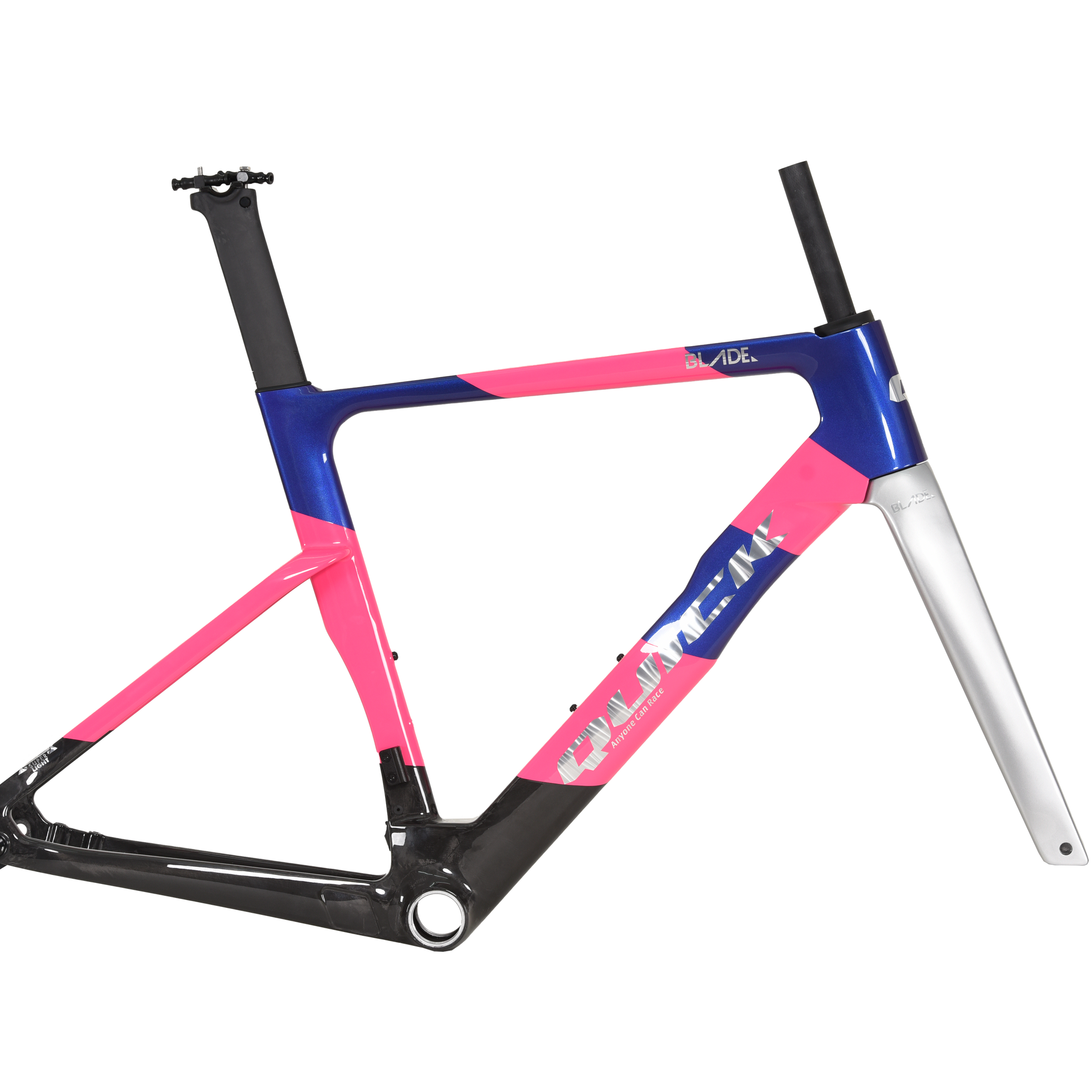

BLADE - Aero/Performance

The new BLADE introduces a next-generation aerodynamic design, refined through CFD fluid dynamics analysis to optimize tube profiles and minimize frontal drag. With a narrower wind-facing surface and enhanced integration, the frame slices through the air with greater efficiency. Constructed from premium T1000 and M60 carbon fibers and manufactured using advanced monolith one-piece molding technology, the BLADE delivers exceptional stiffness and responsiveness—instilling confidence whether accelerating at high speed or launching into a sprint.

Key Features

Aerodynamic Design
Aerodynamic Design
The fork features a more aerodynamic design, boosting overall performance and efficiency.
Advanced Materials
Advanced Materials
German zedler testing standard.
Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

Model

BLADE

Material

High-strength high-modulus carbon fiber

Headset

52 x 52 mm

BB

T47-85.5

Thru-axle

F/ 100×12mm R/ 142×12mm

Tire (Max.)

700×32c

Brakes

Flat-mount

Weight

Frame/924g±5% Fork/445g±5%

Wheels

CANWIN RC50 or F50C

Inner Tube

700 x 28c

Saddle

SAMASSI 3D Print Saddle

Handlebar

CANWIN ZEPHYR SL

Size & Fit

Label Specification XS/456 S/486 M/514 L/536 XL/558 XXL/576
A Size / ST Length (mm) 456 486 514 536 558 576
B Virtual TT (mm) 505 524 542 559 575 593
C ST Angle (°) 74.3° 74° 73.5° 73.5° 73.3° 73°
D HT Angle (°) 71° 71.5° 72° 72.5° 72.8° 73°
E HT Length (mm) 101.7 117 138 157 175 192
F RC Length (mm) 410 410 410 410 410 410
G Wheel Base (mm) 963 976 985 998 1010 1022
H Fork Rake (mm) 45 45 45 45 45 45
I BB Drop (mm) 72 72 72 72 72 72
J Fork Length (mm) 375 375 375 375 375 375
K Standover (mm) 745 764 786 806 824 841
Reach (mm) 360 373 380 391 400 409
Stack (mm) 509 525 547 567 585 602
