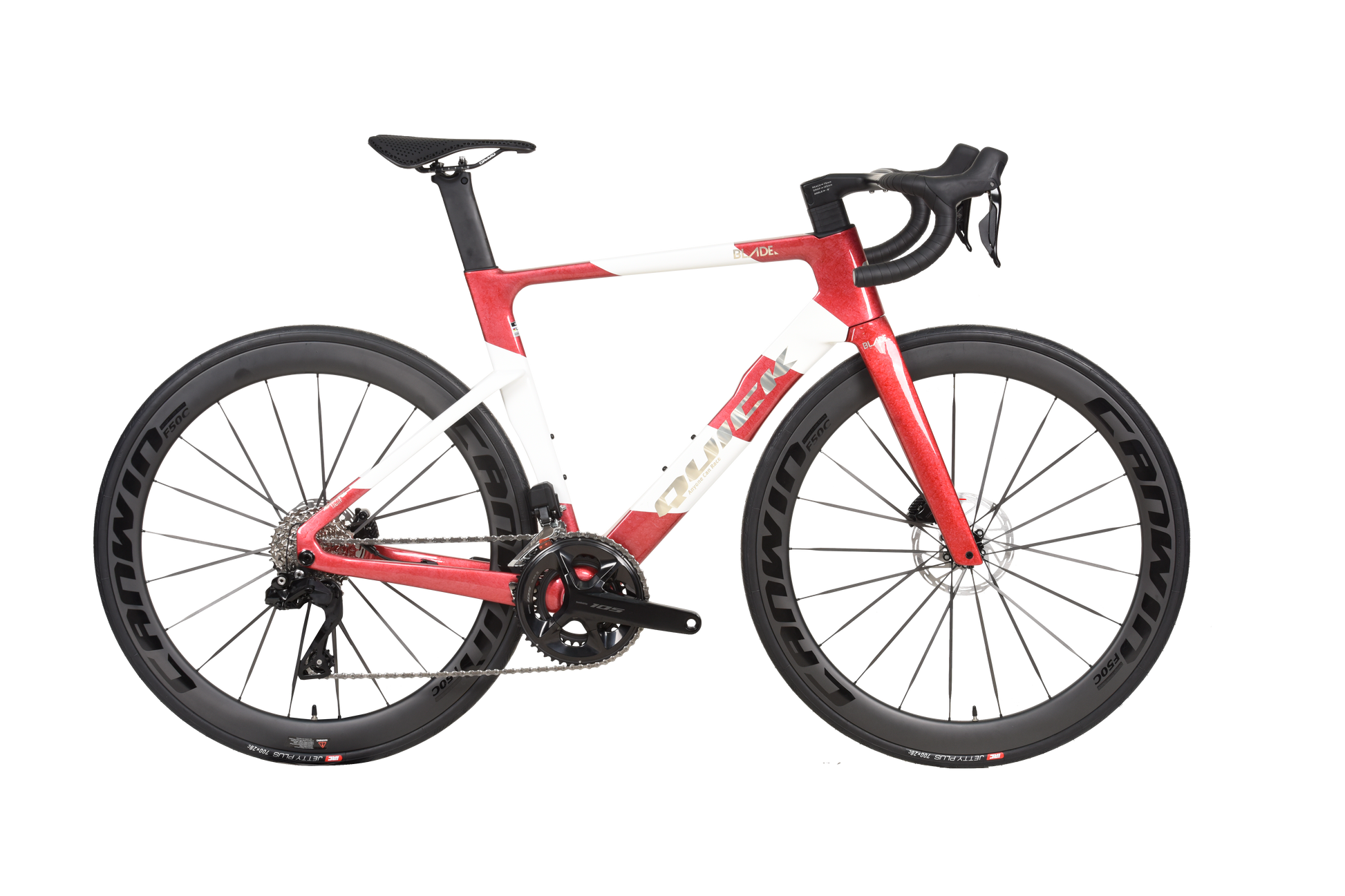

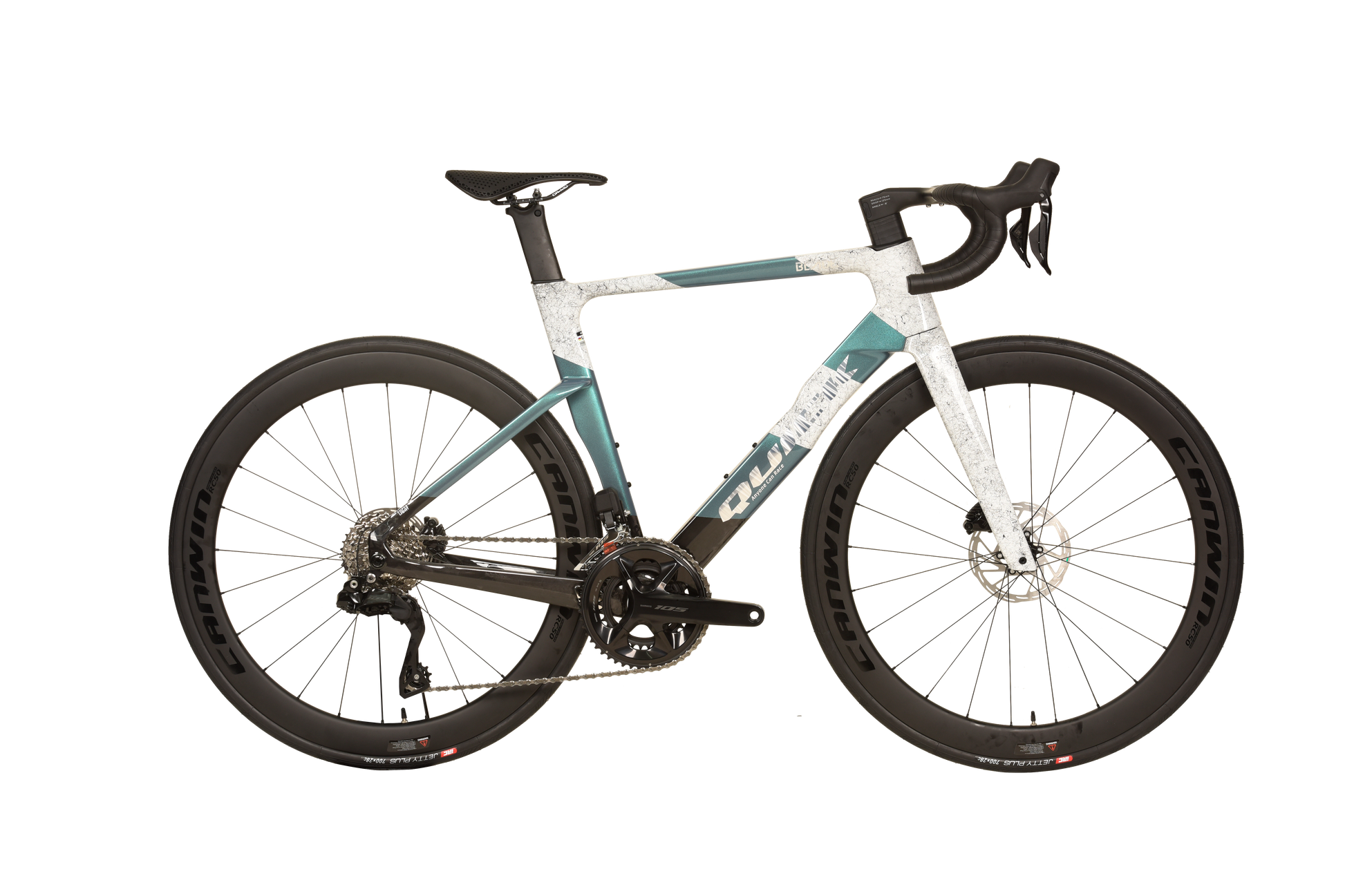

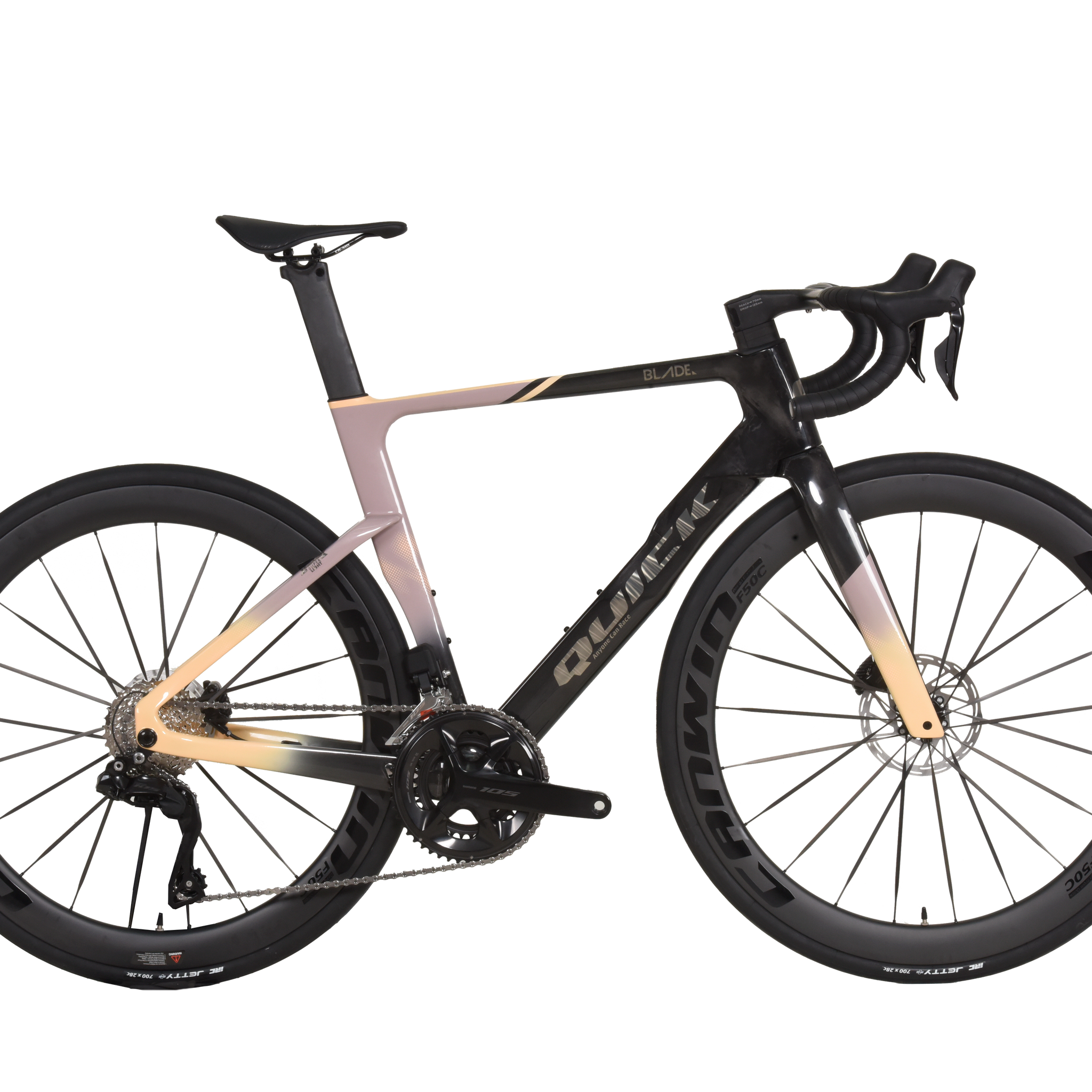

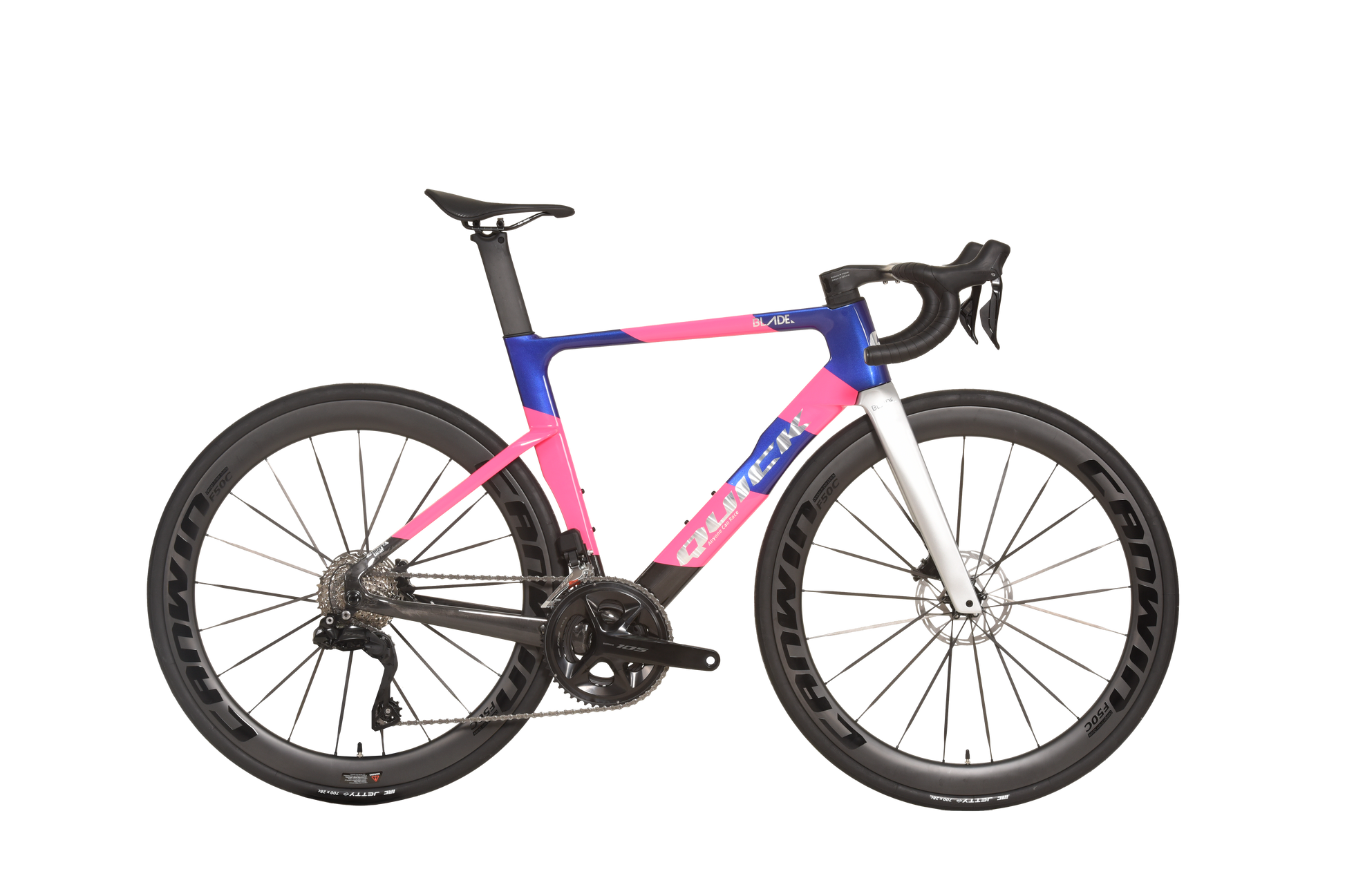

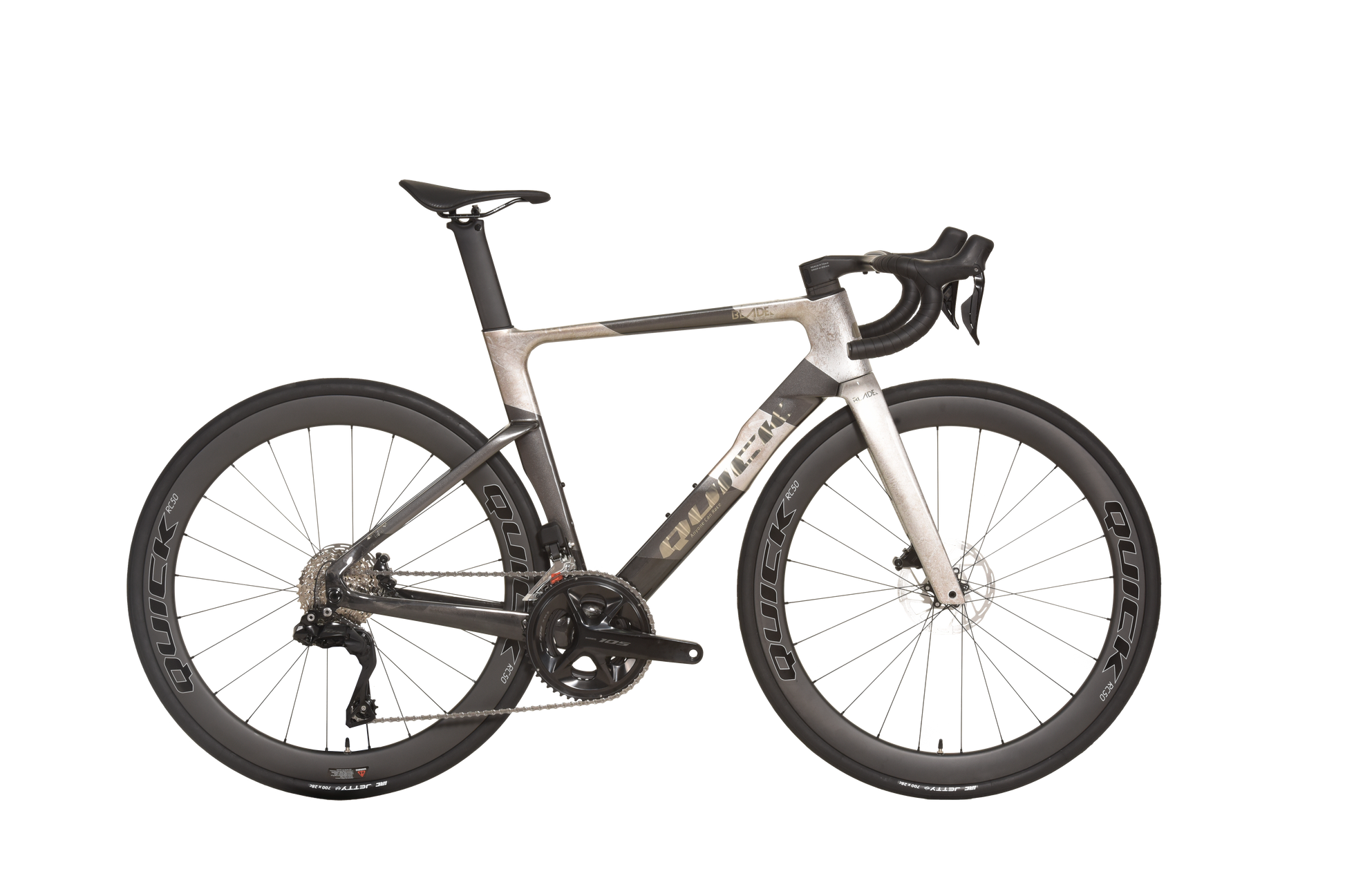

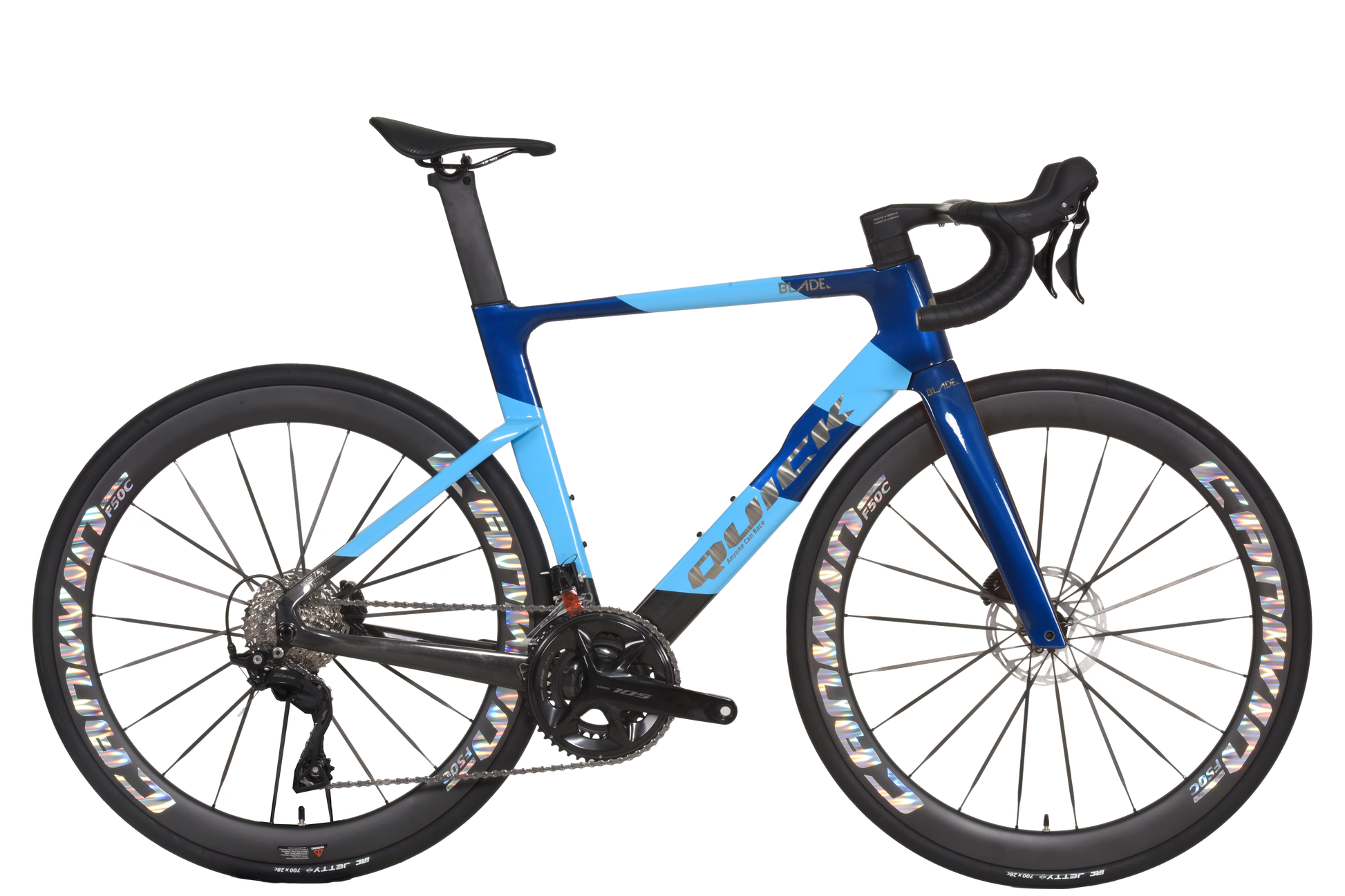

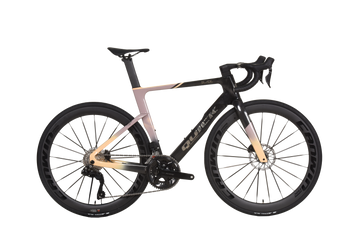

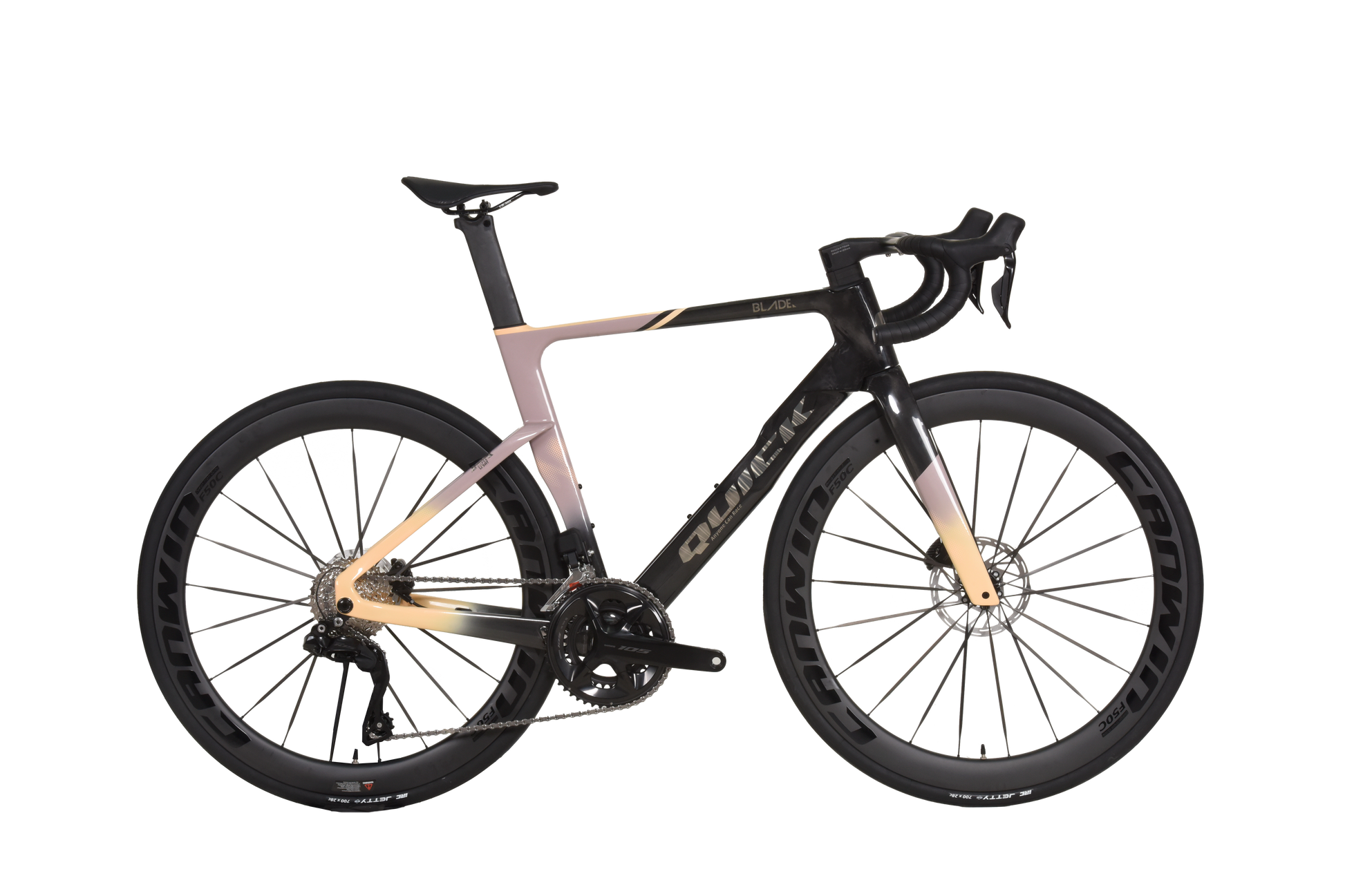

BLADE

BLADE - Aero/Performance

The new BLADE introduces a next-generation aerodynamic design, refined through CFD fluid dynamics analysis to optimize tube profiles and minimize frontal drag. With a narrower wind-facing surface and enhanced integration, the frame slices through the air with greater efficiency. Constructed from premium T1000 and M60 carbon fibers and manufactured using advanced monolith one-piece molding technology, the BLADE delivers exceptional stiffness and responsiveness—instilling confidence whether accelerating at high speed or launching into a sprint.

Key Features

−

Aerodynamic Design

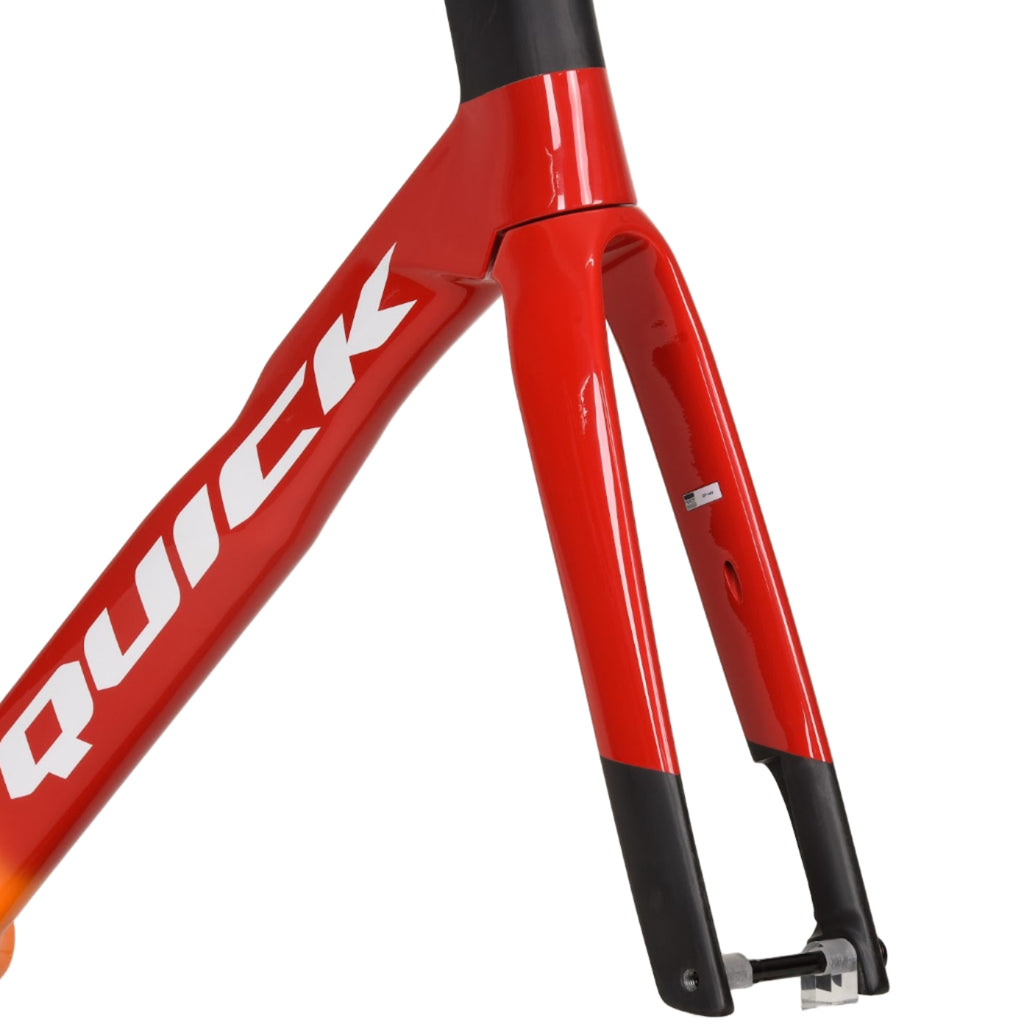

The fork features a more aerodynamic design, boosting overall performance and efficiency.

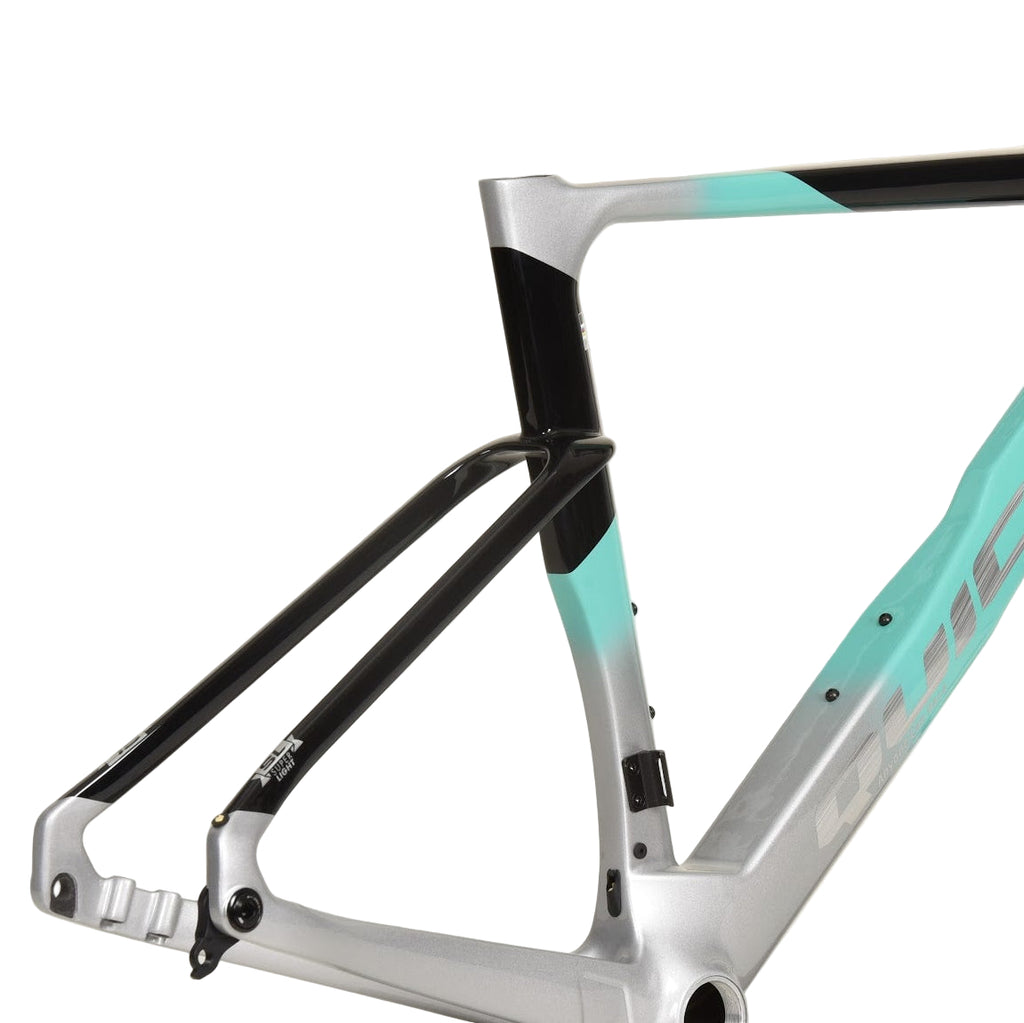

Advanced Materials

German zedler testing standard.

Ultra-Light Integrated Handlebar

Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

−

Model

BLADE

Material

High-strength high-modulus carbon fiber

Headset

52 x 52 mm

BB

T47-85.5

Thru-axle

F/ 100×12mm R/ 142×12mm

Tire (Max.)

700×32c

Brakes

Flat-mount

Weight

Frame/924g±5% Fork/445g±5%

Wheels

CANWIN RC50 or F50C

Inner Tube

700 x 28c

Saddle

SAMASSI 3D Print Saddle

Handlebar

CANWIN ZEPHYR SL

Size & Fit

−

Label	Specification	XS/456	S/486	M/514	L/536	XL/558	XXL/576
A	Size / ST Length (mm)	456	486	514	536	558	576
B	Virtual TT (mm)	505	524	542	559	575	593
C	ST Angle (°)	74.3°	74°	73.5°	73.5°	73.3°	73°
D	HT Angle (°)	71°	71.5°	72°	72.5°	72.8°	73°
E	HT Length (mm)	101.7	117	138	157	175	192
F	RC Length (mm)	410	410	410	410	410	410
G	Wheel Base (mm)	963	976	985	998	1010	1022
H	Fork Rake (mm)	45	45	45	45	45	45
I	BB Drop (mm)	72	72	72	72	72	72
J	Fork Length (mm)	375	375	375	375	375	375
K	Standover (mm)	745	764	786	806	824	841
	Reach (mm)	360	373	380	391	400	409
	Stack (mm)	509	525	547	567	585	602
