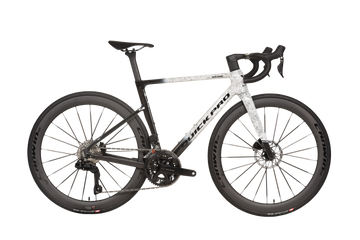

AR:ONE - Aero/All-round

Through advanced carbon engineering and optimized layup techniques, the AR:ONE’s head tube, bottom bracket, and down tube deliver exceptional lateral and torsional stiffness—maximizing pedaling efficiency and ensuring that every watt is transferred directly to the road. Yet true frame design extends beyond pure power transfer. Alongside drivetrain efficiency, a performance road frame must account for variable road surfaces and rider comfort. To achieve this balance, our engineers have integrated nanotechnology with compliant fiber layers, increasing load capacity and impact resistance while attenuating high-frequency road vibrations. The result is a frameset that combines race-level responsiveness with all-day ride quality.

Key Features

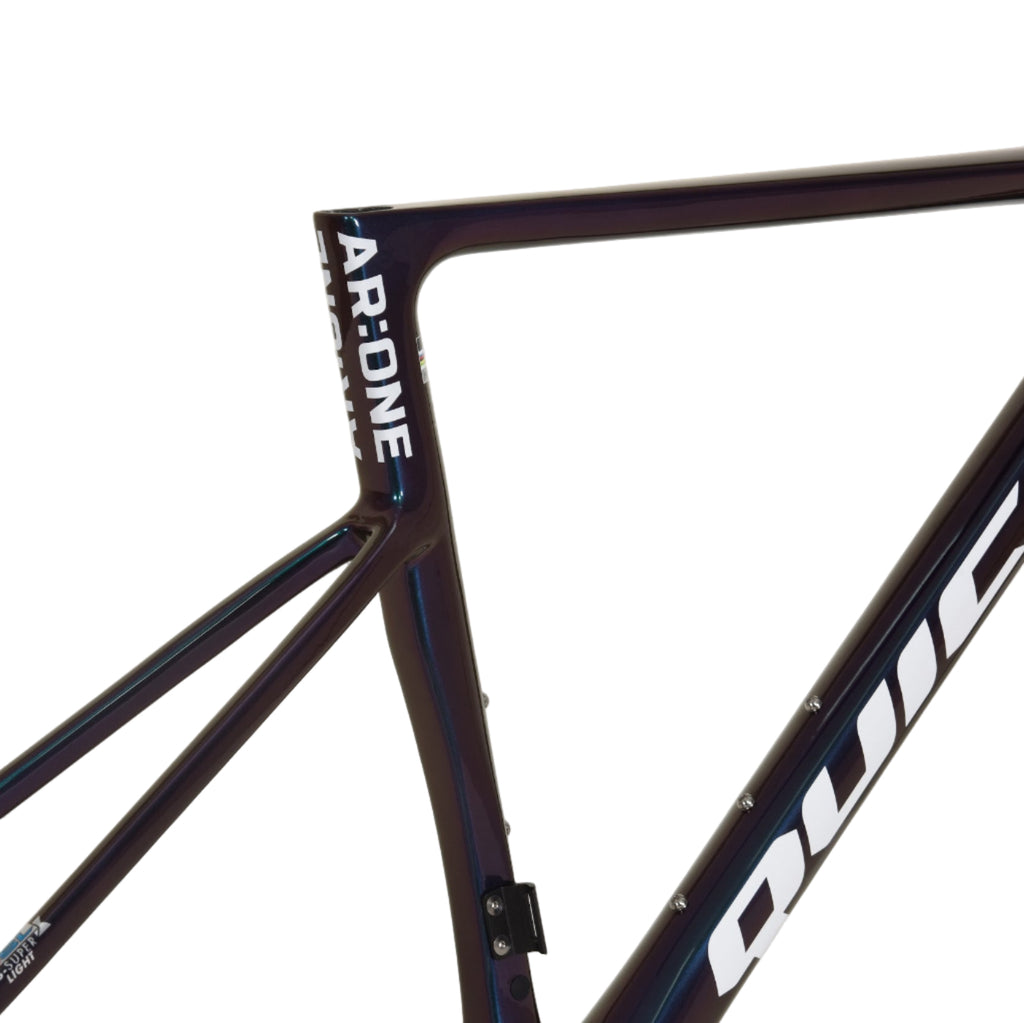

Monolith Technology
Monolith Technology
By forming the main triangle and rear stays in a single mold process, the frame drastically reduces joints and bonding points, resulting in enhanced stiffness, strength, and structural integrity.

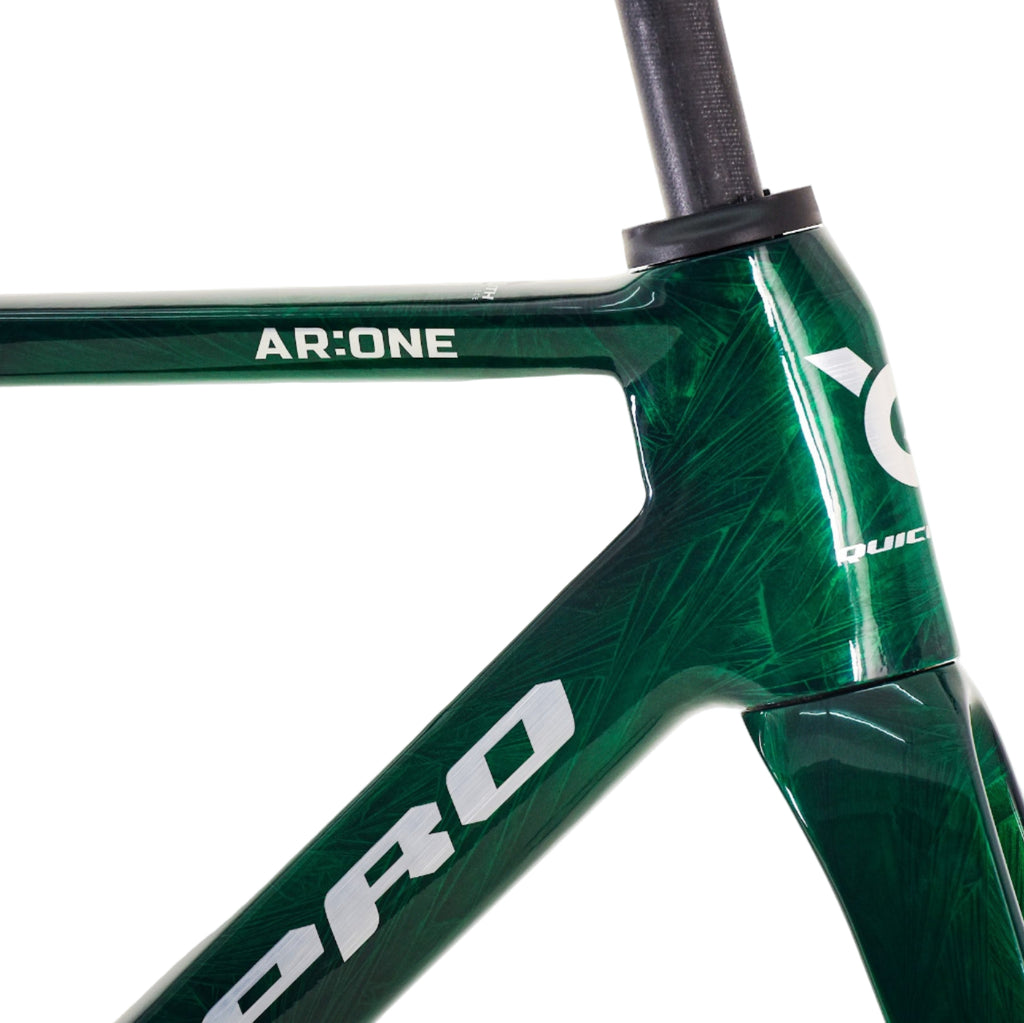

Advanced Materials
Advanced Materials
Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.

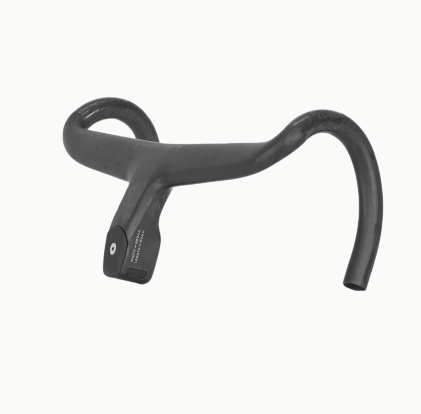

Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

Model

AR:ONE

Material

T1100 & M56

Headset

52 x 52 mm

BB

BSA-68mm

Thru-axle

F/ 100×12mm R/ 142×12mm

Tire (Max.)

700×32c

Brakes

Flat-mount

Weight

Frame/799g±5% Fork/399g±5%

Wheels

CANWIN RC50 or F50C

Inner Tube

700 x 28c

Saddle

SAMASSI 3D Print Saddle

Handlebar

CANWIN ZEPHYR SSL

Size & Fit

Label Specification XS/430 S/460 M/490 L/520 XL/550
A Size / ST Length (mm) 430 460 490 520 550
B Virtual TT (mm) 510 525 540 555 570
C ST Angle (°) 75° 74.5° 74° 73.5° 73.5°
D HT Angle (°) 70° 71° 72° 73° 73°
E HT Length (mm) 105 115 130 145 160
F RC Length (mm) 408 408 408 408 408
G Wheel Base (mm) 982 984.5 986 987 1002
H Fork Rake (mm) 45 45 45 45 45
I BB Drop (mm) 71.6 71.6 71.6 71.6 71.6
J Fork Length (mm) 370 370 370 370 370
K Standover (mm) 710.5 736 761.5 787 812.5
Reach (mm) 375.4 382.2 386.7 391.4 402
Stack (mm) 503.9 516.7 534.6 552 566.6
