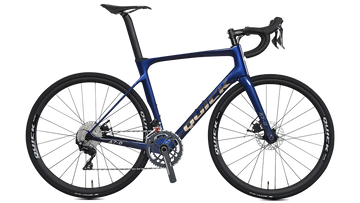

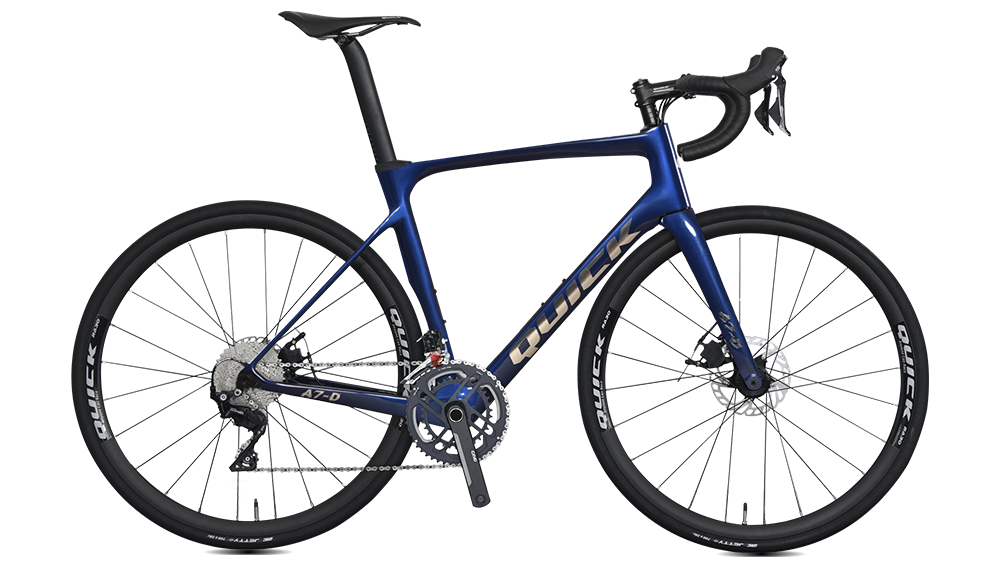

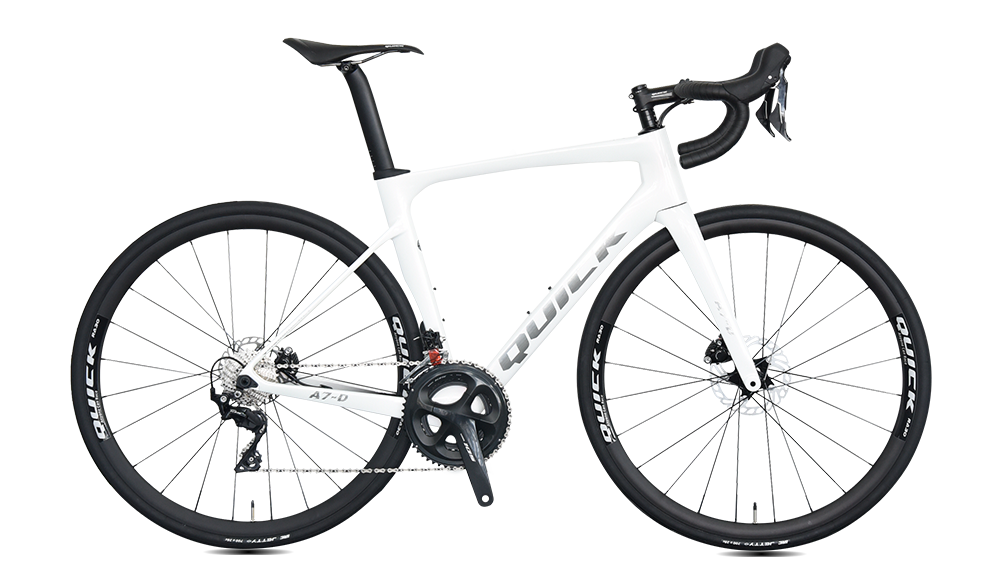

A7D

The A7-D features a clean, aerodynamic design with elegant tube shapes that balance aesthetics and performance. Built with a blend of T700, T800, and M46 high-modulus carbon fibers, and crafted using 4th-generation EPS inner-mold technology, the frame achieves a smooth, uniform internal surface that enhances overall strength and integrity.

Equipped with a hydraulic disk break system, the A7-D delivers superior stopping power and control. The newly upgraded head tube integrates a full internal cable routing system, providing excellent compatibility and easier upgrades or maintenance.

Key Specifications

Model

A7-D

Material

High Strength & Modulus Carbon Fiber

Handlebar

CANWIN ZEPHYR SL

Seatpost

A7-D (carbon)

Headset

52x52cm

BB

BB86

Thru-axle

F/100 x 12mm R/142 x 12mm

Tire (Max.)

700 x 28c

Brakes

Flatmount Disc

Accessory

Fork / Headset / Seatpost / Integrated Handlebar / Axles

Weight

Full Build 8.5kg ± 5%

Wheels

QUICK RA30 (Aluminum)

Size & Fit

The fork features a more aerodynamic design, boosting overall performance and efficiency.

A. Size / ST Length (mm) 420 450 480 510 540 570
B. Virtual TT (mm) 499.7 515 536 548 565 587
C. ST Angle (°) 75° 75° 74° 73.5° 73.3° 73°
D. HT Angle (°) 71° 71.5° 72.5° 72.9° 73.4° 73.5°
E. HT Length (mm) 110 130 150 170 195 220
F. RC Length (mm) 408 408 408 408 408 408
G. Wheel Base (mm) 965 976.9 979.5 981.7 991 1009.9
H. Fork Rake (mm) 45 45 45 45 45 45
I. BB Drop (mm) 69 69 69 69 69 69
J. Fork Length (mm) 368 368 368 368 368 368
K. Standover (mm) 697 728 758 781 808 839
Reach (mm) 363.9 373.3 378.2 378.8 385.3 397.2
Stack (mm) 508.1 528.8 550.4 571.2 596.9 620.9
